Încărcătoare de Baterii și Redresoare
Încărcător Industrial de Baterii - FLT
de la
€ 3.082
fără TVA

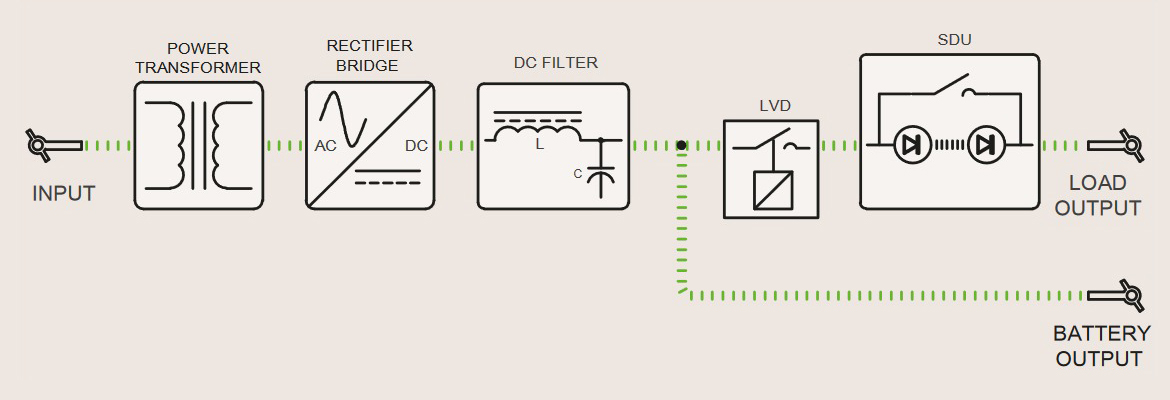

Încărcătorul industrial de baterii FLT este un sistem profesional cu redresor controlat prin tiristoare și microprocesor, destinat încărcării bateriilor cu acid-plumb, nichel-cadmiu și staționare. Oferă moduri de încărcare cu tensiune constantă, curent constant, boost și float, cu ajustare automată în funcție de starea bateriei. Tensiuni de ieșire de la 24V la 220V DC și curenți de la 20A la 200A. Utilizat în telecomunicații, centrale electrice, industria navală și sisteme de alimentare de urgență.
| FLT Battery Charger Technical Features | |
| Capacitate/Putere | 220V - 200A |
| Tehnologie | Thyristor Controlled Rectifier, Microprocessor Controlled Industrial Type Battery Charging System |
| Factor de Putere | >0.65 (Power factor can be increased with optional Input Filter) |
| Intrare | |
| Tensiune Nominală de Intrare | 400VAC 3 Phase + Neutral + Ground (Different voltages are Optional) |
| Toleranță Tensiune | +15 % , -15 % |
| Frecvență | 50 Hz. +/-%5 (60 Hz. Optional) |
| Ieșire | |
| Tensiune Nominală de Ieșire | 220V DC |
| Toleranță Tensiune | +/- 1 % |
| Reglare Tensiune | +/- 20 % |
| Curent Nominal de Ieșire | 200A |
| Reglare Curent | Between 2 % - 100 % |

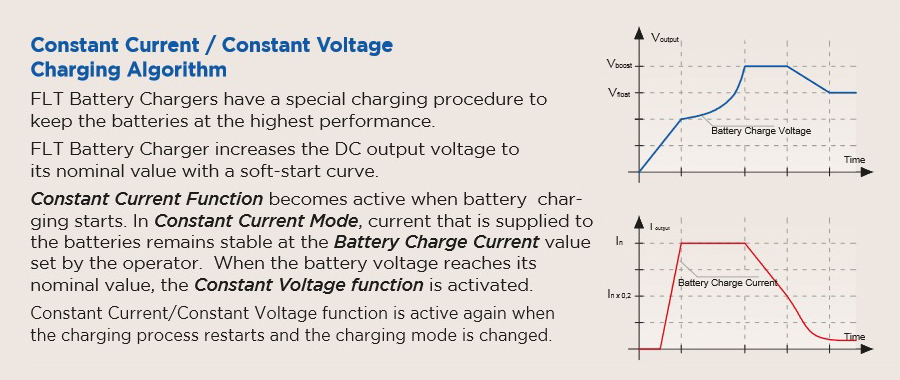

| Mod de Încărcare | Constant Voltage/Constant Current, Boost Charge, Float Charge, Equalization Charge (Optional) |
| Eficiență | 85% - 95% |
| Funcții de Protecție | |
| Protecție Supraîncălzire | Electronic Over-temperature Protection (Fan cooling works at 50C. At 80C, the power to the load is cut.) |
| Descărcător de Supratensiune | Surge Arrester Class-I or Class-II for Over Voltage and Lightning Protection (optional) |
| Protecție Scurgeri la Pământ | It monitors the isolation between DC(+) or DC(-) and ground. It gives an alarm in case of leakage. |
| Funcții Opționale | |
| Unitate Silicon Dropper | Automatic voltage regulation unit for DC load output. 1 Step or 2 Steps |
| Unitate LVD (Protecție Descărcare) | Battery deep discharge Protection. It seperate the load connection when the battery voltage drops. |
| Unitate Automatizare | Dry Contact Outputs for fault and status information |
| Protecție Inversare Polaritate Baterie | It prevents the Battery Circuit Breaker from being set up when the Battery is connected in reverse. |
| Panou de Management și Comunicații | |
| Panou Operator LCD | 4 lines 20 characters LCD display and Mimic Diagram. Input Voltage, Output Voltage, Output Current, Battery current, Boost Voltage, Float voltage, Boost Timer, LVD voltage, Date-time, Status and Fault information, Parameter settings |
| Panou Operator Touchscreen (opțional) | 7" Touch Color screen Input Voltage, Output Voltage, Output Current, Battery current, Boost Voltage,Float voltage, Boost Timer, LVD voltage, Date-time, Status and Fault information, Parameter settings |
| Interfață Management la Distanță (opțional) | Browser-based remote management with Ethernet connectionMOD-BUS RTU with RS485 connection |
| MOD BUS RTU (Opțional) | It is designed for monitoring and management via Mod-Bus. It can be monitored and managed by connecting with a cable. All parameters of FLT Battery Chargers can be monitored and some parameters can be changed with Mod-Bus protocol. |
| Condiții de Mediu | |
| Temperatură de Funcționare | -10 °C ~ +40 °C |
| Altitudine de Funcționare | 1.500m (3.000 m Optional) |
| Umiditate | 90% none condensed |
| Zgomot Acustic | < 55dB (at 1m distance and doors closed) |
| Specificații Cabinet | |
| Tip - Clasă de Protecție | Free Standing Modular Cabinet, IP21 Indoor type (IP54 and higher protection class, Outdoor Type Cabinets are optional) |
| Vopsea - Culoare | Epoxy-Polyester Powder Paint - RAL 7035 (Different Colors are optional) |
| Răcire | Forced air cooling with thermostat controlled fan |
| OPTION | |
| Non-standard input voltage value | FLT series battery chargers can be produced at any required input voltage value that must be stated clearly by the order confirmation. |
| Adjustable output voltage | Output voltage of FLT series battery chargers can be adjusted by the LCD panel. Maximum adjusting range is +/-30% |
| Non-standard frequency | FLT series battery chargers are produced to function under 60 Hz network frequency. |
| Battery Output CB Protection | CB may be added to the battery charger to provide battery output |
| Load Output CB Protection | CB may be added to the battery charger to load output |
| Special Enclosure | FLT series battery chargers can be produced both INDOOR and OUTDOOR in special cabinets having different IPXX protection classes. |
| EMC Filter | Specially designed EMC-Filters can be added optionally to the both input and output of FLT series battery chargers. Filter specifications must be stated by offer/order. |
| Surge protector | High-Voltage Protection and Surge Arrester can be added to the both input and output of FLT series battery chargers. The required protection classes and the specifications (CLASS-I,CLASS-II,CLASS-III) must be given with the order. |
| Dry Contacts Output | Up to 21 Dry Contacts can be added for automotion and remote control. |
| Non-standard Input/Output terminal | According to the various customer needs. Input and output terminals can be designed and located specially on the cabinet. The required terminal drawings must be supplied together with the offer/order. |
| Special design and accessories | FLT series battery chargers can be designed specially with respect to direct customer needs and technical specifications. All special requirements and detailed technical drawings and specifications for accessories must be provided by the customer at the offer/order stage. |
| Interfață Management la Distanță | Browser-based remote management with Ethernet connection MOD-BUS RTU with RS485 connection |
| Touchscreen Panou Operator (optional) | 7" Touch Color screen Input Voltage, Output Voltage, Output Current, Battery current, Boost Voltage, Float voltage, Boost Timer, LVD voltage, Date-time, Status and Fault information, Parameter settings |
| Parallel Connection and Load Sharing | FLT battery chargers can be connected in parallel for redundancy and load sharing. Load balancing indicator can be added. |
| LDV Unit | Low voltage disconnect for Battery discharge protection. |
| SDU Unit | Silicon dropper unit for voltage regulation of DC supply. |
| Protecție Inversare Polaritate Baterie | It prevents the Battery Circuit Breaker from being set up when the Battery is connected in reverse. |
| Input VM/AM | Analog / digital voltmeter or ammeter for input. |
| Output VM/AM | Analog / digital voltmeter or ammeter for output. |
| Battery VM/AM | Analog / digital voltmeter or ammeter for the batteries. |
| Output Distribution CB | Desired number of distribution CB for output can be applied. |
| Battery Rack | Battery racks can be installed if required in the order. |
| Cod | Opțiune | Descriere |
|---|---|---|
| xxxV | Non-standard input voltage value | FLT series battery chargers can be produced at any required input voltage value that must be stated clearly by the order confirmation. |
| ADJ | Adjustable output voltage | Output voltage of FLT series battery chargers can be adjusted by the LCD panel. Maximum adjusting range is +/-30% |
| FRQ | Non-standard frequency | FLT series battery chargers are produced to function under 60 Hz network frequency. |
| OCB | Battery Output CB Protection | CB may be added to the battery charger to provide battery output |
| LCB | Load Output CB Protection | CB may be added to the battery charger to load output |
| K | Special Enclosure | FLT series battery chargers can be produced both INDOOR and OUTDOOR in special cabinets having different IPXX protection classes. |
| EMC | EMC Filter | Specially designed EMC-Filters can be added optionally to the both input and output of FLT series battery chargers. Filter specifications must be stated by offer/order. |
| ESD | Surge protector | High-Voltage Protection and Surge Arrester can be added to the both input and output of FLT series battery chargers. The required protection classes and the specifications (CLASS-I,CLASS-II,CLASS-III) must be given with the order. |
| C | Dry Contacts Output | Up to 21 Dry Contacts can be added for automotion and remote control. |
| T | Non-standard Input/Output terminal | According to the various customer needs. Input and output terminals can be designed and located specially on the cabinet. The required terminal drawings must be supplied together with the offer/order. |
| SPM | Special design and accessories | FLT series battery chargers can be designed specially with respect to direct customer needs and technical specifications. All special requirements and detailed technical drawings and specifications for accessories must be provided by the customer at the offer/order stage. |
| RMU | Remote Management Interface | Browser-based remote management with Ethernet connection MOD-BUS RTU with RS485 connection |
| TSP | Touchscreen Operator Panel (optional) | 7" Touch Color screen Input Voltage, Output Voltage, Output Current, Battery current, Boost Voltage, Float voltage, Boost Timer, LVD voltage, Date-time, Status and Fault information, Parameter settings |
| PC | Parallel Connection and Load Sharing | FLT battery chargers can be connected in parallel for redundancy and load sharing. Load balancing indicator can be added. |
| LVD | LDV Unit | Low voltage disconnect for Battery discharge protection. |
| SDU | SDU Unit | Silicon dropper unit for voltage regulation of DC supply. |
| BBP | Battery Reverse Polarity Protection | It prevents the Battery Circuit Breaker from being set up when the Battery is connected in reverse. |
| IM | Input VM/AM | Analog / digital voltmeter or ammeter for input. |
| OM | Output VM/AM | Analog / digital voltmeter or ammeter for output. |
| BM | Battery VM/AM | Analog / digital voltmeter or ammeter for the batteries. |
| DCB | Output Distribution CB | Desired number of distribution CB for output can be applied. |
| BR | Battery Rack | Battery racks can be installed if required in the order. |
| Model | Cod Produs | Preț fără TVA |
|---|---|---|
| FLT-1P-24V20A | FLT-1P-24V20A | € 3.082 |
| FLT-1P-48V20A | FLT-1P-48V20A | € 3.103 |
| FLT-1P-24V40A | FLT-1P-24V40A | € 3.360 |
| FLT-1P-48V40A | FLT-1P-48V40A | € 3.371 |
| FLT-1P110V20A | FLT-1P110V20A | € 3.424 |
| FLT-3P-24V20A | FLT-3P-24V20A | € 3.483 |
| FLT-3P-24V40A | FLT-3P-24V40A | € 3.574 |
| FLT-1P-24V60A | FLT-1P-24V60A | € 3.649 |
| FLT-3P-24V60A | FLT-3P-24V60A | € 3.713 |
| FLT-3P-48V20A | FLT-3P-48V20A | € 3.729 |
| FLT-1P-48V60A | FLT-1P-48V60A | € 3.745 |
| FLT-3P110V20A | FLT-3P110V20A | € 3.778 |
| FLT-3P-48V40A | FLT-3P-48V40A | € 3.799 |
| FLT-1P-24V80A | FLT-1P-24V80A | € 3.815 |
| FLT-3P-24V80A | FLT-3P-24V80A | € 3.992 |
| FLT-1P-24V100A | FLT-1P-24V100A | € 4.024 |
| FLT-1P110V40A | FLT-1P110V40A | € 4.173 |
| FLT-3P-48V60A | FLT-3P-48V60A | € 4.173 |
| FLT-1P-48V80A | FLT-1P-48V80A | € 4.280 |
| FLT-1P220V20A | FLT-1P220V20A | € 4.280 |
| FLT-3P-24V100A | FLT-3P-24V100A | € 4.291 |
| FLT-3P110V40A | FLT-3P110V40A | € 4.366 |
| FLT-3P-48V80A | FLT-3P-48V80A | € 4.452 |
| FLT-3P220V20A | FLT-3P220V20A | € 4.494 |
| FLT-1P-24V150A | FLT-1P-24V150A | € 4.592 |
| FLT-1P110V60A | FLT-1P110V60A | € 4.601 |
| FLT-1P-48V100A | FLT-1P-48V100A | € 4.730 |
| FLT-3P110V60A | FLT-3P110V60A | € 4.869 |
| FLT-3P-48V100A | FLT-3P-48V100A | € 4.890 |
| FLT-1P220V40A | FLT-1P220V40A | € 5.029 |
| FLT-3P-24V150A | FLT-3P-24V150A | € 5.297 |
| FLT-3P220V40A | FLT-3P220V40A | € 5.297 |
| FLT-1P110V80A | FLT-1P110V80A | € 5.350 |
| FLT-1P-48V150A | FLT-1P-48V150A | € 5.404 |
| FLT-1P110V100A | FLT-1P110V100A | € 5.457 |
| FLT-1P-24V200A | FLT-1P-24V200A | € 5.474 |
| FLT-3P110V80A | FLT-3P110V80A | € 5.522 |
| FLT-3P-48V150A | FLT-3P-48V150A | € 5.586 |
| FLT-3P110V100A | FLT-3P110V100A | € 5.618 |
| FLT-3P-24V200A | FLT-3P-24V200A | € 5.832 |
| FLT-1P220V60A | FLT-1P220V60A | € 5.885 |
| FLT-1P-48V200A | FLT-1P-48V200A | € 6.067 |
| FLT-3P220V60A | FLT-3P220V60A | € 6.313 |
| FLT-1P220V80A | FLT-1P220V80A | € 6.848 |
| FLT-3P220V80A | FLT-3P220V80A | € 7.169 |
| FLT-3P110V150A | FLT-3P110V150A | € 7.202 |
| FLT-1P110V150A | FLT-1P110V150A | € 7.383 |
| FLT-1P220V100A | FLT-1P220V100A | € 7.918 |
| FLT-3P-48V200A | FLT-3P-48V200A | € 8.143 |
| FLT-3P220V100A | FLT-3P220V100A | € 8.261 |
| FLT-1P110V200A | FLT-1P110V200A | € 8.881 |
| FLT-1P220V150A | FLT-1P220V150A | € 8.988 |
| FLT-1P220V200A | FLT-1P220V200A | € 9.523 |
| FLT-3P110V200A | FLT-3P110V200A | € 9.523 |
| FLT-3P220V150A | FLT-3P220V150A | € 9.630 |
| FLT-3P220V200A | FLT-3P220V200A | € 11.663 |
